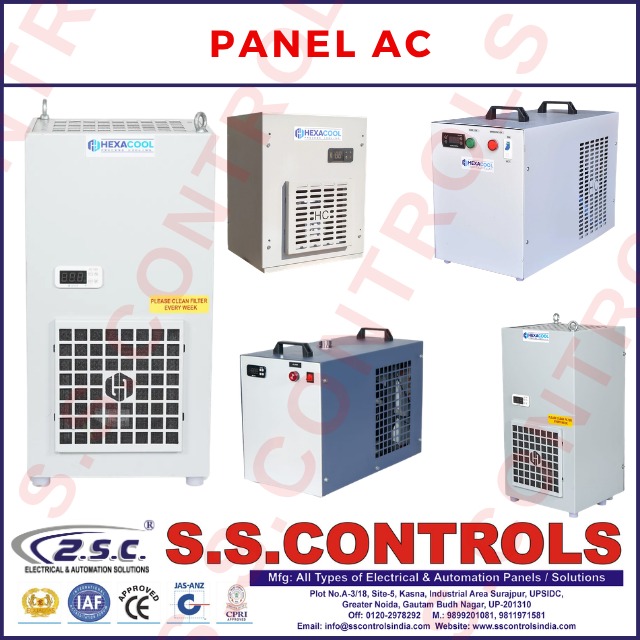

Panel AC
Panel AC
SS Controls offers high-performance Panel Air Conditioners designed to deliver efficient and reliable cooling for sensitive electronic equipment in demanding environments. Ideal for CNC machines, telecom systems, medical equipment, and industrial applications, our solutions provide superior protection against heat, dust, and humidity. Available in both Vertical and Standalone models, these units come with advanced features, customizable options, and CE certification to meet diverse industry requirements
- HC000X1AC – 250W
2. HC000X2AC – 600W
3. HC000X3AC – 1000W
4. HC000X5AC – 1500W
4. HC000X6AC – 2000/2500W
5. HC001X0AC – 3000/3500W
6. HC001X5AC – 5500W
7. HC002X0AC – 7000W
8. HC003Y0AC – 10000W
9. HC004Y0AC – 14000W
- Cooling capacity range: 250W to 17,500W
- Twin airflow: Internal & external air circuits
- IP54 internal protection
- Hermetically sealed compressors (Reciprocatory / Rotary / Scroll)
- Backward curved fans for reliability
- Microprocessor controller with LED/LCD display
- High temperature alarm (optional) with potential-free output
- Integrated drain pipe for condensate
- Eco-friendly refrigerant R134a/R32
- Designed for up to 55°C ambient temperature
- CE marked models available
- IP55 certified models
- High ambient models (up to 60°C)
- Dehumidification module
- Heating module for low ambient areas
- Water-cooled condenser for dusty environments
- Custom-built size for imported unit replacement
- Condensate evaporator module
- Smart controller with Modbus RTU
- Door limit switch interface
- Special voltage & frequency options
- Three-phase power supply
- Aluminum/GI body for telecom applications
- Stainless steel body for coastal & pharma applications
- CNC Machine Tools
- Drive Panels
- PLC & Instrument Panels
- CPU/Server Enclosures
- Telecom Equipment
- Medical Electronic Equipment
- Process Control Equipment
- Robotics
- Gas Analyzer Equipment
- Crane/Material Handling Equipment
- Any sensitive electronics housing
| Model | Capacity | Refrigerant | Voltage | Amp Rating | Dimensions (W×D×H) mm |
|---|---|---|---|---|---|
| HC000X1AC | 250W | R134a | 230V AC, 50Hz, 1Ph | 2 | 310×280×425 |
| HC000X2AC | 600W | R134a | 230V AC, 50Hz, 1Ph | 2.5 | 310×280×580 |
| HC000X3AC | 1000W | R134a | 230V AC, 50Hz, 1Ph | 3.5 | 300×300×780 |
| HC000X5AC | 1500W | R134a | 230V AC, 50Hz, 1Ph | 5 | 300×300×780 |
| HC000X6AC | 2000/2500W | R22/R32 | 230V AC, 50Hz, 1Ph | 7 | 470×300×982 |
| HC001X0AC | 3000/3500W | R22/R32 | 230V AC, 50Hz, 1Ph | 9 | 470×300×1335 |
| HC001X5AC | 5500W | R22/R32 | 230V AC, 50Hz, 1Ph | 12 | 560×560×1750 |
| HC002X0AC | 7000W | R22/R32 | 230V AC, 50Hz, 1Ph | 15 | 560×560×1750 |
| HC003Y0AC | 10000W | R22/R32 | 415V AC+N, 50Hz, 3Ph | 9 | 560×560×1750 |
| HC004Y0AC | 14000W | R22/R32 | 415V AC+N, 50Hz, 3Ph | 15 | 560×560×1750 |
